3-jaw ball swing lock chuck
Click on product image magnification
Online inquiryThe chuck can attract the workpiece and hold it on.
The jaw operates in two stages :
Clamping pull back, so it can hold the workpiece exactly on the position in front of the chuck, and make it under the stabile situation.
The chuck can grasp the workpiece on both O.D. and I.D. clamping.
The chuck can switch between O.D. and I.D. clamping mode by a simple operation.
The chuck can grasp the part of the taper. The chcuk can exactly grasp the black surface of the cast irons, which has draft.
So the discard process can be ignored on the chucking part of the workpiece.(It can grasp up to a 20 degree taper when using a clipper.)
The jaw can equalize on the O.D. clamping, so it can grasp the workpiece steady. (Jaw self-equalizing to max 5°)
Dustproof performance is excellent. It is differ from regular general purpose chuck. It is structurally dustproof. Especially there is a dustproof seal in the part of lock arm to prevent the dust.

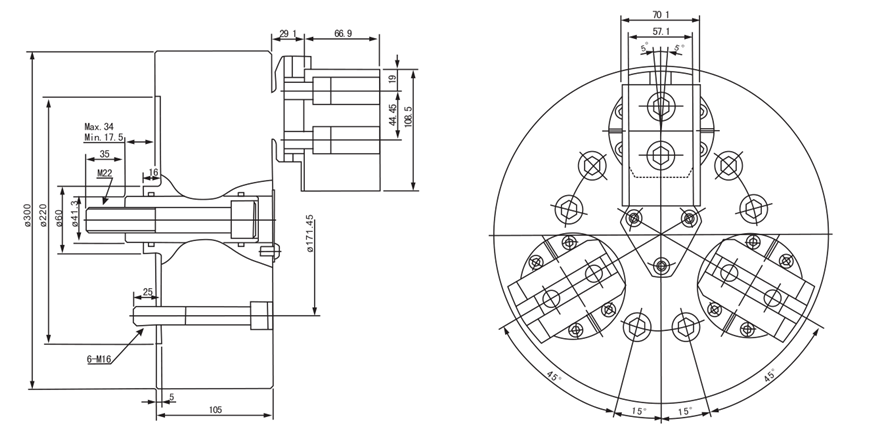

Unit : mm
| Spec/Model |
Piston stroke (mm) |
Jaw stroke dia.?? (mm) |
Max. pull power (kgf) |
Max. gripping force (kn) |
Max.hydraulic power Mpa (kgf/cm2) |
Max. RPM (r.p.m.) |
Weight(fixture excluded) (kg) |
Inertia I(kg?m2) |
Matched cylinder |
Matched jaws |
OD gripping range |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BL-12 | 17.5 | 12.4 | 40.7(4152) | 122(12440) | 2.8(28.5) | 2800 | 65 | 0.18 | MS150C | BL12-0HC | ?63-?240 / ?127-?305 |
