SC-69-A MEDIUM DUTY LIVE CENTER WITH DRAW-OFF NUT
Click on product image magnification
Online inquiry
Type: Live centers series
Duty: Medium
Application: CNC lathe, high speed lathe and other lathe.
Working Usage: Applicable for the length less than 400mm ordinary turning process, and slender workpiece turning process.
Structure The radial load and axial load designed separately. Adopted double row ball precision bear and thrust bearing and needle bearing.
Accessories For SC-69-M-3A/4A/5A, Y type spanner
TIR Less than 0.002mm
Inspecting the run out accuracy of the center tip must be under the status of holding the workbar tightly.
There is S model of light duty type, same spec, which can improve the issue of deformation of processing slender workpiece

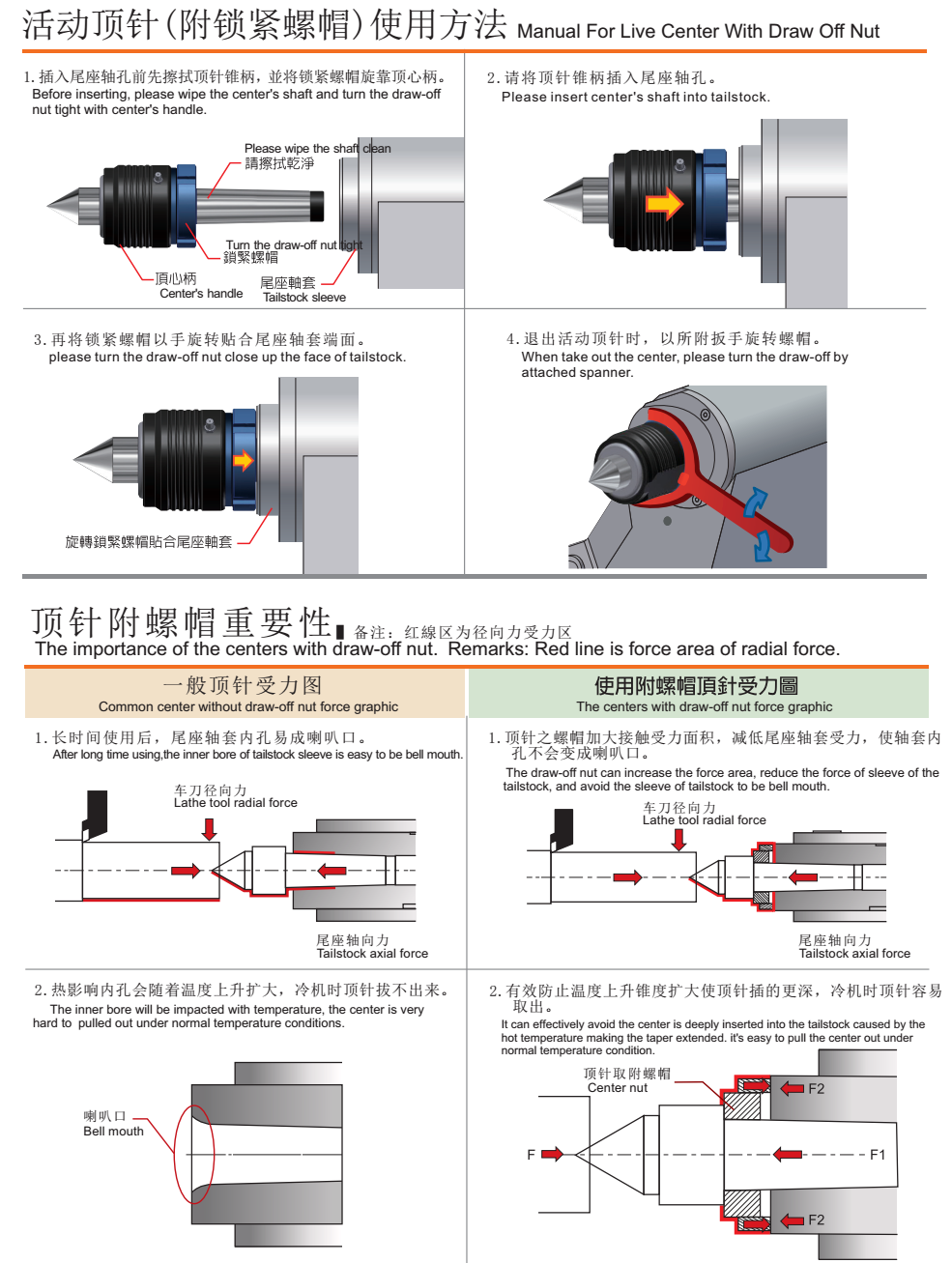

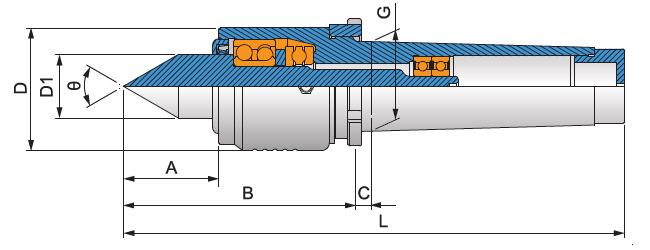

Specification UNIT：mm
|
Model/Spec |
A | B | C | D | D1 | G | L | Center |
Max. RPM |
Max. radial load |
Max. axial thrust force |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SC-69-M-3A | 48 | 115 | 8 | 57 | 31.2 | 23.825（MT3) | 202 | 60゜ | 4,500rpm | 1,200kg | 1,800kg |
| SC-69-M-4A | 48 | 115 | 9 | 57 | 31.2 | 31.267（MT4) | 226 | 60゜ | 4,500rpm | 1,300kg | 2,200kg |
| SC-69-M-5A | 48 | 115 | 9 | 57 | 31.2 | 44.399（MT5) | 250 | 60゜ | 4,500rpm | 1,400kg | 2,300kg |
