HK SHORT TYPE ROTATING HYDRAULIC CYLINDER WITH THROUGH-HOLE AND SAFETY DEVICE（1）

SHORT TYPE ROTATING HYDRAULIC CYLINDER WITH THROUGH-HOLE AND SAFETY DEVICE

Click on product image magnification

Download

Online inquiry

Products in detail

Brand：NTH

Super short spec. light weight with large through hole.
Built-in safety check valves and pressure relief valves is available for option.
It can be mounted from front or back.


Size unit: mm

Spec/ Model

Piston area cm2
Extend

Piston area cm2
Retract

Piston strokemm

Max RPM
HK-0928 53.2 50.5 10 8000
HK-1036 70.7 62.8 15 8000
HK-1246 99.1 88 15 7000
HK-1246(A)
 99.1 88 15 7000
HK-1246(S) 99.1 88 15 7000
HK-1552-13 135.3 125 20 6500
HK-1875 179.5 163.5 25 5000
HK-1875(S) 179.5 163.5 25 5000


Spec/ Model

Max.Operating Pressure
Mpa(kgf/cm2)

Inertia moment

kg*m2


Weight
kg
Total Leakage
L/min
HK-0928 3.5（35） 0.03 5 2
HK-1036 4.0(40) 0.05 7.4 2.5
HK-1246 4.0(40) 0.06 9.7 3
HK-1246(A)
 4.0(40) 0.06 9.7 3
HK-1246(S) 4.0(40) 0.06 9.7 3
HK-1552-13 4.0(40) 0.11 11.8 3.9
HK-1875 4.0(40) 0.24 21.5 4.2
HK-1875(S) 4.0(40) 0.24 21.5 4.2

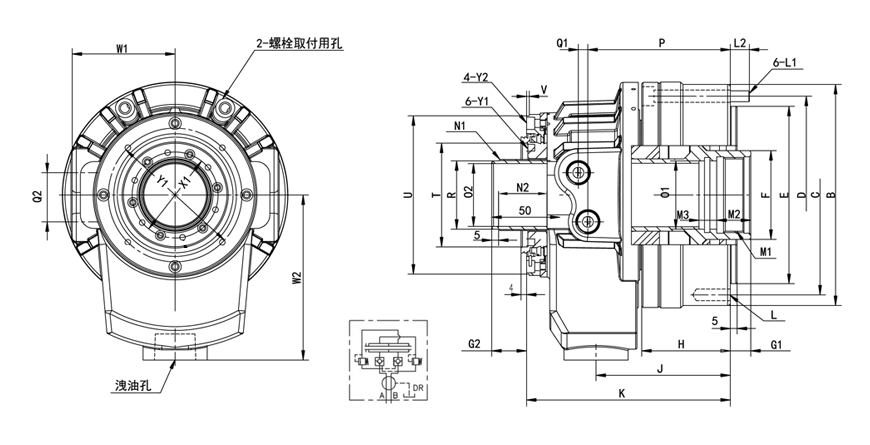

Spec/Model

A

(ID)

B C D

E

h7

F

G1

Max

G1

Min

G2

Max

G2

Min

H J K L L1 L2 M1 M2 M3
HK-0928 90 126 100 108 80 40 10 0 23 13 53 88 131 6~M8x20 M8x60 14 M33x1.5 25 15
HK-1036 105 142 115 125 100 48 15 0 25 10 65 94 150 6~M10×20 M8×70 14 M42×1.5 25 15
HK-1246 125 165 140 140 120 65 15 0 38 23 68 96 153 12~M10×20 M8×75 15 M55X2.0 25 15
HK-1246(A)
 125 165 147 147 130 65 15 0 40.5 25.5 65 98.5 149.5 6~M10×20
 M8×75
 15 M55X2.0
 25 15
HK-1246(S) 125 165 130 147 100 65 15 0 38 23 68 96 153 12~M10×20 M8×75 15 M55X2.0 30 15
HK-1552-13 150 185 170 165 130 70 20 0 37 17 73 110 164 12~M10×20 M8×75 15 M60X2.0 30 15
HK-1875 175 215 190 190 160 95 25 0 46 21 84 131 181 12~M10×20 M10×90 20 M85X2.0 35 15
HK-1875（S） 175 215 190 195 160 95 25 0 46 21 84 131 181 12~M10×20 M10×90 20 M85X2.0 35 15


Spec/ Model
N1 N2

O1

H8

O2

H8

P Q1 Q2 O

R

G7

T U V W1 W2 X1 X2 Y1 Y2
HK-0928 M34x1.5P 25 30 28 89 7 28 PT1/4 32 65 86 2 63 80 43 M4x8 76 M4x7
HK-1036 M44×1.5P 28 38 36 104 7 34 PT1/4 42 73 98 2 66 106 54 M5×8 83 M5×6
HK-1246 M52×1.5P 24 50 46 106 7 36 PT3/8 50 90 116 2 79 119 63 M6x8 98 M5×6
HK-1246(A)
 M52×1.5P
 24 50 46 106 7 36 PT3/8
 50 90 116 2 79 119 63 M6x8 98 M5x6

HK-1246(S)

M52×1.5P 24 50 46 106 7 36 PT3/8 50 90 116 2 79 119 63 M6×8 98 M5×6
HK-1552-13 M58×1.5P 25 55 52 113 8 40 PT1/2 56 97 128 2 82 133 72 M6×8 110 M5×6
HK-1875 M84×2P 30 80 75 126 10 46 PT1/2 81 125 163 2 98 160 98 M6×8 155 M6×8
HK-1875(S) M84×2P 30 80 75 126 10 46 PT1/2 81 125 163 2 98 160 98 M6×8 155 M6×8

Subject to technology changes without prior information

Non-standard requirements can be made
