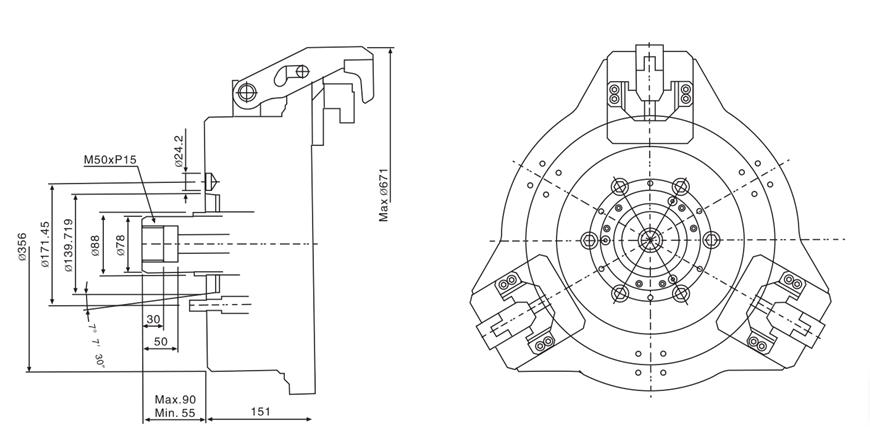

High speed and light weight type strong finger chuck for aluminum wheel
Click on product image magnification
Online inquiryAll sliding surfaces are hardened and ground for accurate actual running and long service repeatability.
Mounting : Adaptor mounting to fit with DIN, ISO, BS, ASA, B5-9 type A spindles.
Unit : mm
| Spec/Model | Aluminum wheel size |
Chuck O.D. (mm) |
Matched spindle nose type |
Max pull power (kgf) |
Max gripping force (kn) |
Max hydraulic power Mpa (kgf/cm2) |
Max. RPM (r.p.m.) |
Weight(fixture excluded) (kg) |
Matched cylinder |
|---|---|---|---|---|---|---|---|---|---|
| F61A8 | 13"-22" | 610 | A2-8 | 3000 | 3300 | 2.9(29.5) | 1500 | 145 | MS125C35 |
