This product is mainly used to calibrate or support workpiece during processing, lt is used with standard chucks.

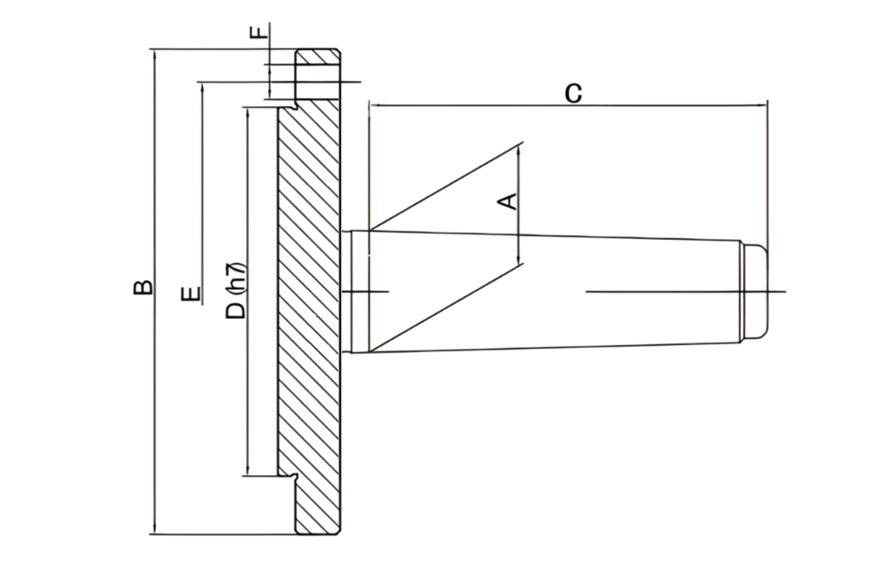

1.The connecting size for stangard 3-jaw self-centering chuck is used for the size of B,D,E,F and so ontcan be customized according to the cient's demand.
2.The main body and the taper shank adopt quality carbon steel ,with whole quenched,t is thus has good performance.
UNIT：mm
|
Model/Spec
|
A
|
B
|
C
|
D
|
E
|
F
|
Accuracy
（mm）
|
|
DCC-MT3
|
23.825
|
112
|
81
|
80
|
95
|
3-M8
|
0.005
|
DCC-MT4
|
31.267
|
132
|
102.5
|
100
|
115
|
3-M8
|
0.01
|
|
DCC-MT5
|
44.399
|
167
|
129.5
|
130
|
147
|
3-M10
|
0.01
|
|
DCC-MT6
|
63.348
|
193
|
182
|
155
|
172
|
3-M10
|
0.01
|
