品牌/Brand：NTH

Omatei JDS 系列，是為高精度的銑削加工而設計，結構精巧，安裝簡易且精度穩定，適用于CNC加工中心及精雕機進行批量化生產作業。重復夾持精度高，并且穩定，能夠大量降低換模時間，極大地提高生產效率。

產品特性：

為周定式不可回轉，內置氣缸直接驅動。采用膜片彈性技術，重復精度3μ以下。

永久性精密壽命高密封性設計，防水防塵能力。

輕松控制兩端同心度、平行度。多段尺寸可分次加工、降低設備成本。

產品適用性：

適用CNC銑鉆床 非標夾具等運用，可做聯排多工位夾具使用。

適用于微電子產品、光學零件、醫療零件、輕薄高精密度工件的機加工。

精密元件的檢測。

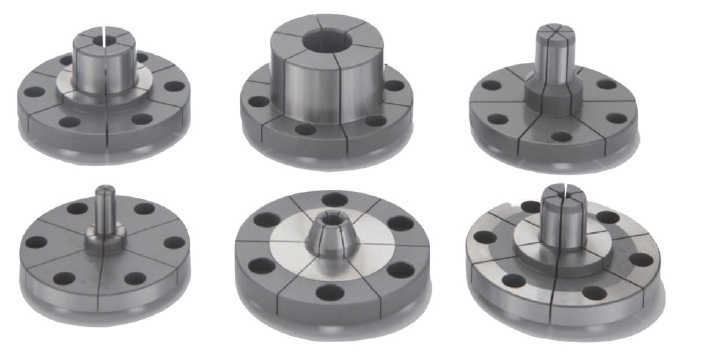

PRODUCT FEATURES
Fixed, non-rotating, directly driven by the built-in cylinder Employing diaphragm elasticitytechnology, with a repeatability of below 3uPermanent service life in precision; designed with high sealing performance and waterproofand dustproof capabilitiesAllowing easy control over the concentricity and parallelism at both ends Allowing separatesize processing over multiple sections to reduce equipment costsReplacing CNC multi-section simultaneous processing with single-action grinding machineAllowing fine-tunning with three-point clamping forceAPPLICATIONSSuitable for non-standard fixtures for CNC milling and drilling machines; may be used asrow-type multi-station fixtures
Suitable for machining of microelectronics products, optical parts, medical parts, thin andhigh-precision workpieces
Detection of precision components

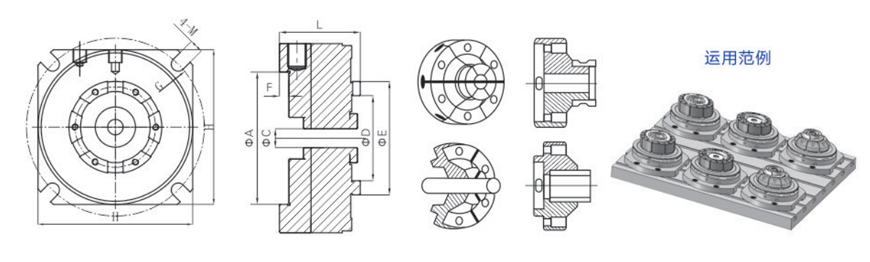

單位Unit:mm

型號/Model 規格/Spec	工作壓力 Kg/cm2	使用夾爪 Diaphragm	夾持行程 Opening/Closing Stroke	A	C	D	E	F	G	H	L	M
JDS4-60	2-7	JD-60	0.1	70	10	45	60	5	120	100	42.7	7
JDS5-70	2-7	JD-70	0.3	100	15	50	70	5	170	150	49.2	9
JDS6-100	2-7	JD-100	0.3	150	35	80	100	5	195	177	54.2	11
JDS8-150	2-7	JD-150	0.3	180	65	120	150	5	245	220	59.8	13

保留技術更改的權利,恕不另行通知 Subject to technology changes without prior information
非標需求可定做 Non-standard requirements can be made
