品牌：OMATEI
選型指導：
1，所用卡盤的品牌及型號
2，工件尺寸及需要夾持的高度
產品優勢：
1，標準硬爪材質為優質合金鋼，強度好。
2，精密齒距緊密貼合卡盤基爪，降低磨損。
3，可用于NTH及所有其他品牌相關型號的卡盤。
4，客制化非標卡爪可設計、定做、OEM代工。
Brand:OMATEI
Selection Guidance
1, Chuck brand and model name
2, Workpiece size and the gripping height
Advantage
1, For standard hard jaws, it's made of high quality alloy steel
2, Fine serration pitch can tight fit with chuck master jaws, lower abrasion.
3, Applicable onto the related chuck models of SMW/Kitagawa/Soul/Howa/Samchully/Auto-strong/Tonfou/Chandox/Autogrip/NTH and so on well-known brand.
4, Customized and non-standard jaws and be designed and OEM.
|
Chuck number |
Size |
serration
Pitch
|
JH1 | JH2 | JH3 | JH4 | JH5 | JH6 | JH7 | JH9 | JH10 | JH11 | JH18 | JH19 | JH21 | JH22 | JH23 | JH24 | JH25 | JH26 |
質量KG (1個） Weight |

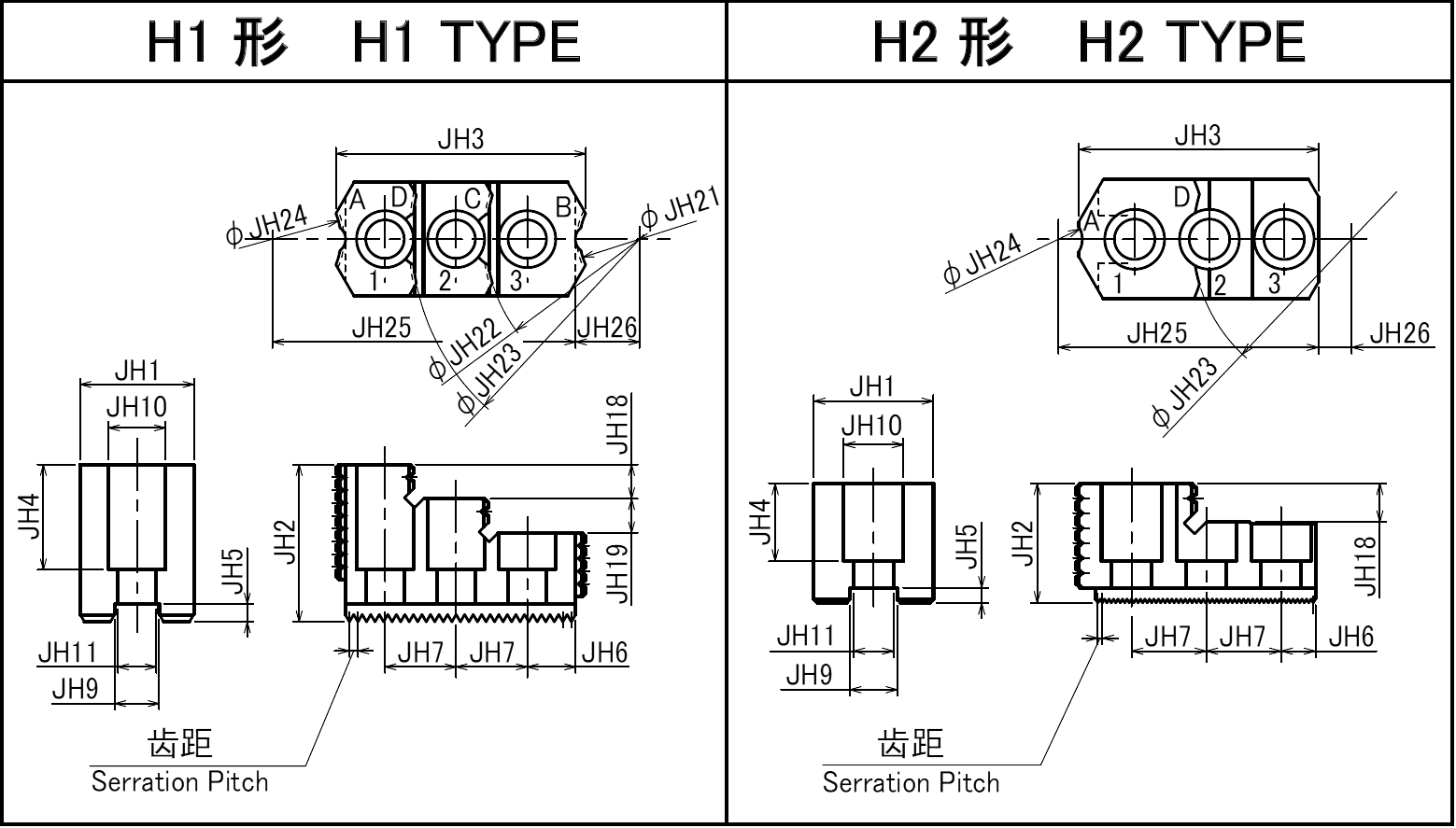

爪形式 Jaw type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| H01MA | 6 | 3 | 35 | 46 | 85.2 | 31 | 6 | 13.5 | 20 | 12 | 17.5 | 11 | 10 | 10 | 44 | 104 | 128 | 56 | 106 | 25 | 0.6 | H1 |
| H01MA | 8 | 3 | 40 | 55 | 87.8 | 37 | 6 | 17 | 25 | 14 | 20 | 13.5 | 12 | 12 | 42 | 108 | 160 | 48 | 106.5 | 22.5 | 0.7 | H1 |
| H01MA | 10 | 3 | 40 | 56 | 98.7 | 39 | 6 | 15 | 15 | 16 | 20 | 13.5 | 13 | 13 | 86 | 145 | 208 | 53 | 120 | 45 | 1 | H1 |
| H01MA | 12 | 3 | 50 | 62 | 104.4 | 45 | 6 | 16 | 16 | 18 | 23 | 16 | 15 | 15 | 140 | 200 | 260 | 70 | 134.5 | 71.5 | 1.5 | H1 |
| H01MA | 15 | 3 | 65 | 75 | 153.3 | 55 | 8 | 20 | 20 | 26 | 32 | 22 | 30 | 300 | 150 | 225 | 68 | 3.3 | H2 | |||
| H037M H027M | 4/5 | 1.5 | 28 | 30 | 54.3 | 20 | 5 | 12 | 14 | 11 | 14 | 9 | 8 | 75 | 20 | 63 | 12 | 0.3 | H2 | |||
| H037M H027M | 6 | 1.5 | 35 | 35 | 64.3 | 22 | 5 | 10 | 20 | 12 | 17.5 | 11 | 11 | 86 | 12 | 69.5 | 9.5 | 0.4 | H2 | |||
| H037M H027M | 8 | 1.5 | 40 | 40 | 80.1 | 26 | 5 | 11.5 | 25 | 16 | 20 | 13.5 | 13 | 106 | 16 | 87 | 11 | 0.8 | H2 | |||
| H037M H027M | 10 | 1.5 | 45 | 45 | 95.3 | 30 | 5 | 15 | 30 | 18 | 23 | 16 | 15 | 138 | 24 | 106 | 16 | 1.2 | H2 | |||
| H037M H027M | 12 | 1.5 | 50 | 50 | 109.7 | 37 | 5 | 15.5 | 35 | 21 | 26 | 18 | 20 | 166 | 32 | 124.5 | 17.5 | 1.8 | H2 | |||
| H3KT | 15 | 3 | 60 | 60 | 132.5 | 41 | 8 | 18 | 42 | 26 | 32 | 22 | 20 | 12 | 90 | 116 | 205 | 65 | 164 | 32 | 3 | H2 |
| H3KT | 6 | 1.5 | 31 | 35 | 70.8 | 23 | 5 | 14 | 20 | 12 | 17.5 | 11 | 12 | 12 | 71 | 136 | 68 | 104 | 36 | 0.3 | H3 | |
| H3KT | 8 | 1.5 | 35 | 51 | 87 | 36 | 5 | 19 | 25 | 14 | 20 | 13.5 | 12 | 13 | 100 | 186 | 169 | 87 | 127 | 38 | 0.6 | H1 |
| H3KT | 10 | 1.5 | 40 | 54 | 101.3 | 39 | 5 | 10.5 | 30 | 16 | 20 | 13.5 | 13 | 220 | 82 | 136.5 | 54.5 | 1 | H1 | |||
| H3KT | 12 | 1.5 | 50 | 52 | 106.64 | 35 | 5 | 20.25 | 30 | 21 | 26 | 17.5 | 17 | 210 | 84 | 145.25 | 47.75 | 1.3 | H2 |
|
Chuck number |
Size |
serration
Pitch
|
J1 | J2 | J3 | J4 | J5 | J6 | J7 | J8 | J9 | J10 | J11 | J12 | J13 | J14 | J15 | J16 | J17 | J18 |
質量KG (1個）
Weight
|

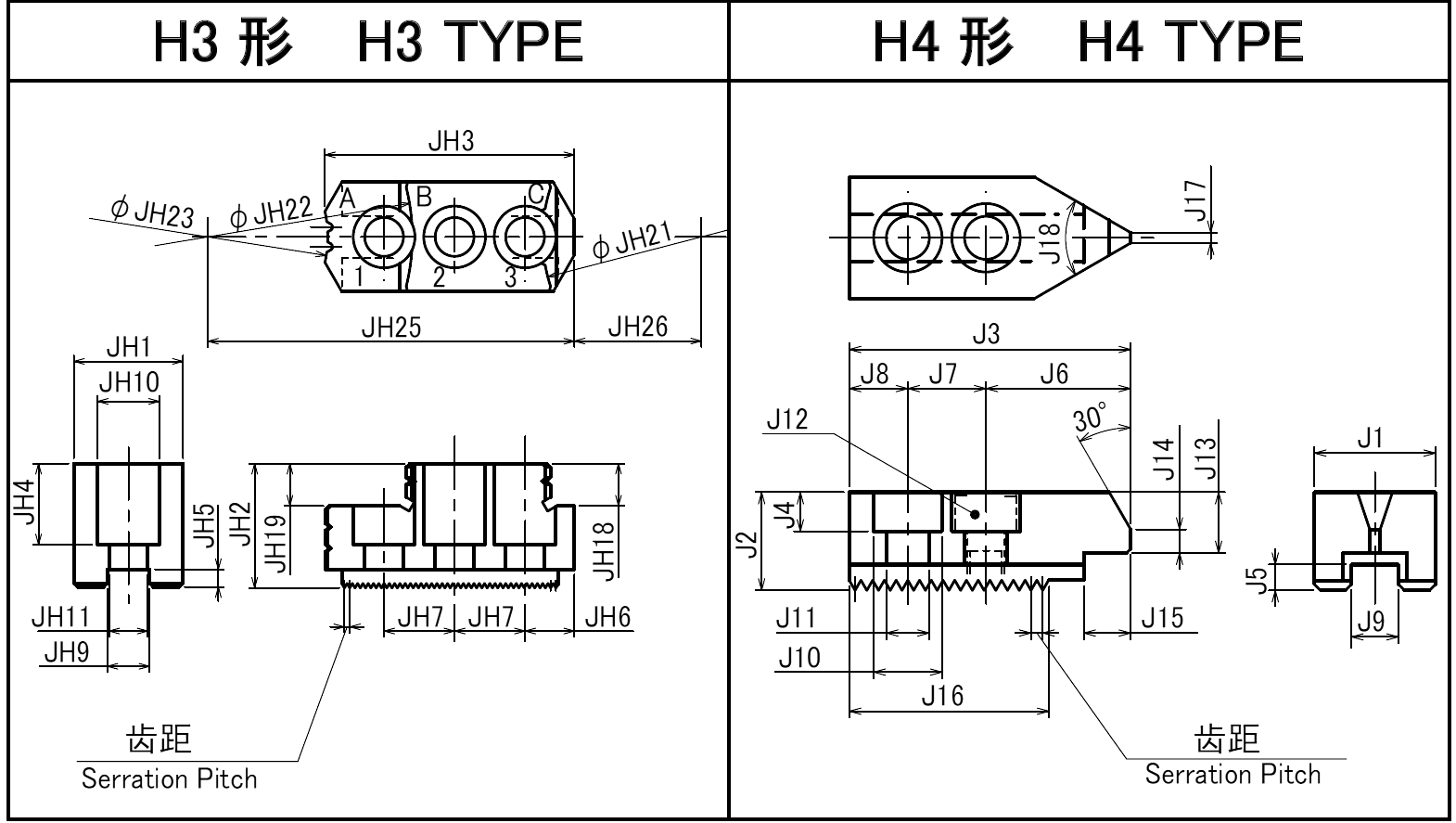

爪形式 Jaw type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| H05M | 6 | 1.5 | 31 | 23.5 | 23.5 | 10 | 5 | 38 | 20 | 15 | 12 | 17.5 | 11 | M10 | 15.5 | 6 | 13 | 46.5 | 1.5 | 60° | 0.4 | H4 |
| H05M | 8 | 1.5 | 35 | 26 | 89.5 | 12 | 5 | 44.5 | 25 | 20 | 16 | 20 | 13.5 | M12 | 18 | 7 | 14.5 | 57 | 1.5 | 60° | 0.5 | H4 |
| H05M | 10 | 1.5 | 40 | 29 | 103.5 | 14 | 5 | 48.5 | 30 | 25 | 18 | 23 | 15.5 | M14 | 21 | 7 | 16 | 67.5 | 1.5 | 60° | 0.7 | H4 |
| H05M | 12 | 1.5 | 45 | 32 | 122 | 16 | 5 | 52 | 40 | 30 | 21 | 26 | 17.5 | M16 | 22 | 7 | 16.5 | 85.5 | 1.5 | 60° | 0.9 | H4 |
|
Bolt number |
Size | 1-2 | 1-2 | 1-2 | 1-2 | 2-3 | 2-3 | 2-3 | 2-3 |
|---|---|---|---|---|---|---|---|---|---|
| Chuck number | Size | A | B | C | D | A | B | C | D |
| H01MA | 6 | 49~66 | 25~41 | 85~101 | 109~125 | 19~23 | 60~75 | 120~136 | 144~160 |
| H01MA | 8 | 75~109 | 18~50 | 83~117 | 135~169 | 23~57 | 69~103 | 136~169 | 188~222 |
| H01MA | 10 | 82~136 | 27~81 | 85~140 | 148~203 | 24~76 | 86~139 | 145~199 | 208~262 |
| H01MA | 12 | 83~166 | 34~119 | 94~179 | 154~239 | 24~107 | 94~178 | 154~238 | 214~298 |
| H01MA | 15 | 116~200 | 198~284 | 32~100 | 300~384 | ||||
| H037M H027M | 4 | 23~40 | 61~67 | 11~15 | 75~93 | ||||
| H037M H027M | 5 | 28~63 | 63~89 | 10~36 | 80~116 | ||||
| H037M H027M | 6 | 54~82 | 87~114 | 13~40 | 128~155 | ||||
| H037M H027M | 8 | 54~103 | 102~151 | 10~55 | 152~201 | ||||
| H037M H027M | 10 | 84~132 | 140~187 | 26~72 | 199~247 | ||||
| H037M H027M | 12 | 94~160 | 173~239 | 26~92 | 241~307 | ||||
| H037M H027M | 15 | 119~204 | 200~287 | 36~121 | 282~367 | ||||
| H037M H027M | 6 | 48~78 | 96~126 | 32~60 | 12~36 | 60~84 | 71~101 | ||
| H3KT | 8 | 75~109 | 9~83 | 74~109 | 107~142 | 24~58 | 60~94 | 125~159 | 158`192 |
| H3KT | 10 | 74~119 | 34~79 | 121~165 | 155~199 | 14~59 | 94~139 | 180~224 | 214~259 |
| H3KT | 12 | 101~166 | 166~233 | 42~108 | 226~292 |
