品牌：OMATEI
選型指導：
1，所用卡盤的品牌及型號
2，工件尺寸及需要夾持的高度
產品優勢：
1，標準軟爪材質為優質45#鋼，強度好，可硬化。
2，精密齒距緊密貼合卡盤基爪，降低磨損。
3，可用于NTH及所有其他品牌相關型號的卡盤。
4，客制化非標卡爪可設計、定做、OEM代工。

Brand:OMATEI
Selection Guidance
1, Chuck brand and model name
2, Workpiece size and the gripping height
Advantage
1, For standard soft jaws, the material is high quality 45# steel, stronger and hardenable.
2, Fine serration pitch can tight fit with chuck master jaws, lower abrasion.
3, Applicable onto the related chuck models of SMW/Kitagawa/Soul/Howa/Samchully/Auto-strong/Tonfou/Chandox/Autogrip/NTH and so on well-known brand.
4, Customized and non-standard jaws and be designed and OEM.

Description

Standard soft blank jaws are made of carbon steel,JIS S48C (SAE 1045 OR I SO C50 is equlianlent to JIS S48C

When ordering jaws,specify chuck model I number

When ordering jaws nuts if needed.

Specify the following information if special jaws are necessary shape of work piece Size of work piece

Shape of work piece/Size of work piece/Machining condition/Gripping position

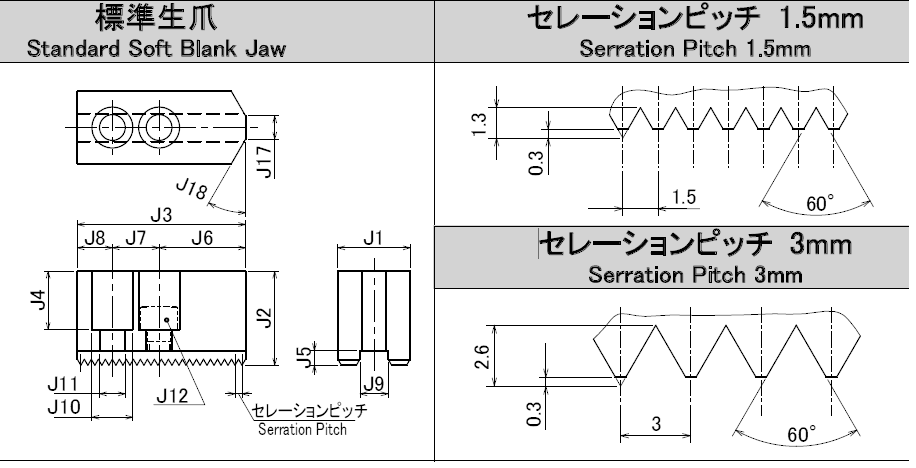

標準生爪共用表 COMPATIBILITY OF SOFT BLANK JAW

Chuck series number	Size	Serration Pitch	J1	J2	J3	J4	J5	J6	J7	J8	J9	J10	J11	J12	J16	J17	J18	質量kg(1個) Weight
H01MA	4	1.5	25	25	54	14	5	30	14	10	10	13.5	9	M8	?	8	30	0.2
H01MA	5	1.5	25	25	58.5	14	5	31.5	19	8	10	14	9	M8	?	?	?	0.2
H01MA	6	3	31	40	72	25	6	37	20	15	12	17.5	11	M10	?	?	?	0.6
H01MA	6S	1.5	31	40	70.5	26	5	35.5	20	15	12	17.5	11	M10	?	?	?	0.6
H01MA	8	3	34	40	90	22	6	45	25	20	14	20	13.5	M12	?	?	?	0.8
H01MA	8S	1.5	34	40	90	23	5	45	25	20	14	20	13.5	M12	?	?	?	0.8
H01MA	10	3	40	40	111	22	6	51	30	30	16	20	13.5	M12	?	?	?	1.2
H01MA	10S	1.5	40	40	111	23	5	51	30	30	16	20	13.5	M12	?	?	?	1.2
H01MA	12	3	50	50	129	32	6	60	30	39	18	23	15.5	M14	?	?	?	2.2
H01MA	12S	1.5	50	50	129	33	5	60	30	39	18	23	15.5	M14	?	?	?	2.2
H01MA	15	3	65	70	156	50	8	72	50	34	26	32	22	M20	?	?	?	4.7
H01MA6	A5-J	1.5	31	40	70.5	26	5	35.5	20	15	12	17.5	11	M10	?	?	?	0.6
H022M	6	1.5	30	30	70.5	20	5	36	20	14.5	12	17.5	11	M10	?	?	?	0.4
H022M	8	1.5	35	40	90	26	5	45	25	20	16	20	13.5	M12	?	?	?	0.7
H022M	10	1.5	40	50	105	35	5	51	30	24	18	23	15.5	M14	?	?	?	1.3
H022M	12	3	50	60	126	42	6	60	40	26	21	26	17.5	M16	?	?	?	2.4
H027M H037M	4	1.5	25	25	47.5	16	4	22	16	9.5	11	14	9	M8	?	4	30°	0.2
H027M H037M	5	1.5	25	25	47.5	16	4	22	16	9.5	11	14	9	M8	?	4	30°	0.2
H027M H037M	6	1.5	35	35	66	22	5	31.5	20	14.5	12	17.5	11	M10	?	?	?	0.6
H027M H037M	8	1.5	40	40	85.5	26	5	40.5	25	20	16	20	13.5	M12	?	?	?	1
H027M H037M	10	1.5	45	45	108	30	5	54	30	24	18	23	15.5	M14	?	?	?	1.5
H027M H037M	12	1.5	50	60	111	42	5	51	35	25	21	26	17.5	M16	?	?	?	2.2
H027M H037M	15	3	60	66	138	47	8	66	42	30	26	32	22	M20	?	?	?	3.9
H032M	6	1.5	28	30	60	21	4	30	16	14	11	14	9	M8	?	?	?	0.4
H3KT	6	1.5	26	28	66	16	5	34	20	12	12	17.5	11	M10	54	5	30°	0.3
H3KT	8	1.5	35	38	95	23	5	46	25	24	14	20	13.5	M12	75	12	30°	0.8
H3KT	10	1.5	40	42	110	27	5	50	30	30	16	20	13.5	M12	90	15	15°	1.2
H3KT	12	1.5	50	50	111	33	5	60	30	21	21	26	17.5	M16	?	?	?	1.8

標準生爪共用表 COMPATIBILITY OF SOFT BLANK JAW

Chuck number	Size	Compatibility chuck series number
H01MA	4	H022M5	H024M5	H012D4	?	?
H01MA	6	?	?	?	H010D6	?
H01MA	8	?	?	?	H010D8	?
H01MA	15	H01MA18	H01MA21	H01MA24	?	?
H022M	6	H023M8	H024M6	?	H024D6	H05M6
H022M	8	H023M10	H024M8	?	H024D8	H05M8
H022M	10	H023M12	H024M10	?	?	H05M10
H022M	12	H023M15	H024M12	?	?	?
H037M	6	H032M8	H027M6	H012D6	H024D6	H034M6
H037M	8	H032M10	H027M8	H012D8	H024D8	H034M8
H037M	10	H032M12	H027M10	H012D10	?	H034M10
H037M	12	?	H027M12	?	?	H034M12
H027M	15	?	H037M15	?	H047M15	H034M15

保留技術更改的權利：Subject to technical changes
