品牌：OMATEI

選型指導：

1，所用卡盤的品牌及型號
2，工件尺寸及需要夾持的高度
產品優勢：
1，標準硬爪材質為優質合金鋼，強度好。
2，精密齒距緊密貼合卡盤基爪，降低磨損。
3，可用于NTH及所有其他品牌相關型號的卡盤。
4，客制化非標卡爪可設計、定做、OEM代工。

Brand:OMATEI
Selection Guidance
1, Chuck brand and model name
2, Workpiece size and the gripping height
Advantage
1, For standard hard jaws, it's made of high quality alloy steel.
2, Fine serration pitch can tight fit with chuck master jaws, lower abrasion.
3, Applicable onto the related chuck models of SMW/Kitagawa/Soul/Howa/Samchully/Auto-strong/Tonfou/Chandox/Autogrip/NTH and so on well-known brand.
4, Customized and non-standard jaws and be designed and OEM.

Hard top jaws,soft top jaws

Inch serrated/Metric serrated/Tongue & groove

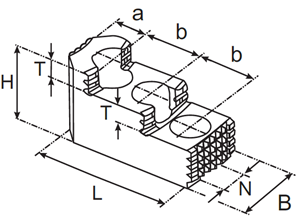

Inch serrated hard top jaws“D”

if high concentricity is required jaws have to be ground on the chuck at clamping pressure

Id.No.	Serration inch	B mm	H mm	L mm	N mm	T mm	a mm	b mm	Mass kg/jaw
12081306	1/16″×90°	30	34	58	12	8.5	13	16	0.2
12081636	1/16″×90°	34	39	65	14	10	18	16.5	0.3
12082036	1/16″×90°	40	45	82	17	10.5	19	23	0.57
12082626	1/16″×90°	45	56	100	17	15.5	23	30	0.85
12083036	1/16″×90°	45	56	105	21	13.5	26	30	0.95
12084006	1/16″×90°	55	73	120	21	22	30	34	1.7
12085046	3/32″×90°	55	73	145	25.5	32	46	38	2.2
12084546	3/32″×90°	60	75	140	25.5	19	38	38	2.5
12086346	3/32″×90°	70	75	145	25.5	32	46	38	3

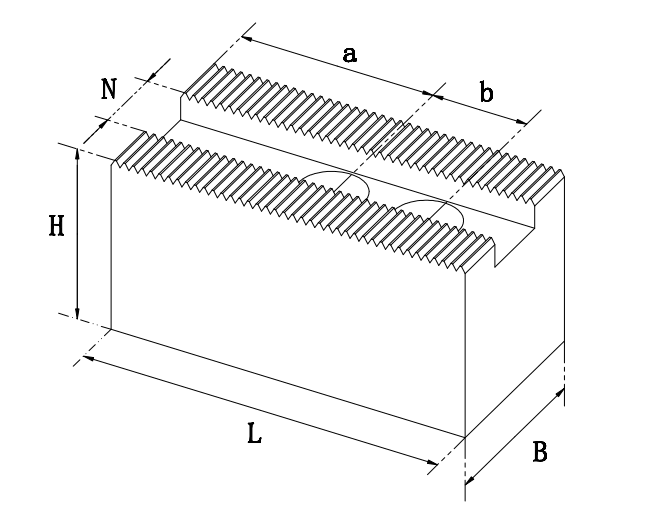

Inch serrated soft blank top jaws“D”

Id.No.	Serration inch	B mm	H mm	L mm	N mm	a mm	b mm	Mass kg/jaw
12071300	1/16″×90°	30	30	60	12	29	16	0.3
12071680	1/16″×90°	30	35	70	14	38	16.5	0.42
12072130	1/16″×90°	35	40	90	17	47	23	0.85
12072620	1/16″×90°	40	45	110	17	60	30	1.23
12072500	1/16″×90°	45	45	110	21	60	30	1.25
90072500	1/16″×90°	60	60	120	25.5	64	34	2.6
12073000	1/16″×90°	50	50	125	21	73	30	1.85
12074030	1/16″×90°	60	60	140	21	81	34	3.2
12074040	3/32″×90°	60	60	140	25.5	75	38	3.2
12075050	3/32″×90°	60	60	170	25.5	105	38	3.6
12075040	3/32″×90°	75	75	160	25.5	97	38	5.5
12075140	3/32″×90°	60	60	205	25.5	104	38	4.5

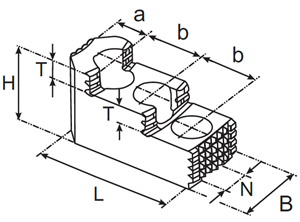

Metric serrated hard top jaws“M"

if high concentricity is required jaws have to be ground on the chuck at clamping pressure

Id.No.	Serration inch	B mm	H mm	L mm	N mm	T mm	a mm	b mm	Mass kg/jaw
12081307	1.5×60°	30	34	58	12	8.5	13	16	0.2
12081627	1.5×60°	34	39	67	12	10	14	20	0.31
12082127	1.5×60°	40	45	86	14	10.5	19	25	0.6
12082627	1.5×60°	45	56	100	16	15.5	23	30	0.85
12083037	1.5×60°	45	56	105	21	13.5	26	30	0.95
12084007	1.5×60°	55	73	120	21	22	30	34	1.7
12084047	1.5×60°	55	73	145	25.5	32	46	38	2.2
12084527	1.5×60°	60	75	140	22	19	38	38	2.5

Metric serrated soft blank jaws“M"

Id.No.	Serration inch	B mm	H mm	L mm	N mm	a mm	b mm	Mass kg/jaw
12071301	1.5×60°	30	30	60	12	29	16	0.3
12071621	1.5×60°	30	35	70	12	34	20	0.42
12072121	1.5×60°	35	40	90	14	47	25	0.85
12072621	1.5×60°	45	45	110	16	60	30	1.3
12073001	1.5×60°	50	50	125	21	73	30	1.85
12074021	1.5×60°	60	60	140	22	75	38	3.2
12074031	1.5×60°	60	60	140	21	81	34	3.2
12074041	1.5×60°	60	60	140	25.5	75	38	3.2

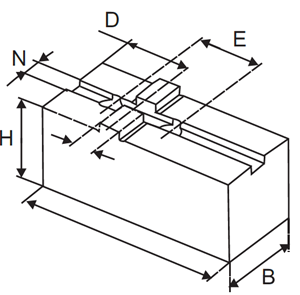

Tongue & groove soft blank top jaws “C”

American standard tongue &groove

Id.No.	B mm	H mm	L mm	N mm	D mm	E mm	I mm	Mass kg/jaw
12041660	30	35	80	7.94	30	38.1	12.68	0.58
12042060	40	40	100	7.94	35	44.4	12.68	0.92
12042560	50	50	120	12.7	42	54	19.03	1.25
12043060	50	50	140	12.7	50	63.5	19.03	2.15
12044050	60	60	165	12.7	60	76.2	19.03	3.6
12045050	75	75	165	12.7	60	76.2	19.03	5.5

保留技術更改的權利：Subject to technical changes
