品牌：OMATEI
選型指導：
1，所用卡盤的品牌及型號
2，工件尺寸及需要夾持的高度
產品優勢：
1，標準硬爪材質為優質合金鋼，強度好。
2，精密齒距緊密貼合卡盤基爪，降低磨損。
3，可用于NTH及所有其他品牌相關型號的卡盤。
4，客制化非標卡爪可設計、定做、OEM代工。
Brand:OMATEI
Selection Guidance
1, Chuck brand and model name
2, Workpiece size and the gripping height
Advantage
1, For standard hard jaws, it's made of high quality alloy steel.
2, Fine serration pitch can tight fit with chuck master jaws, lower abrasion.
3, Applicable onto the related chuck models of SMW/Kitagawa/Soul/Howa/Samchully/Auto-strong/Tonfou/Chandox/Autogrip/NTH and so on well-known brand.
4, Customized and non-standard jaws and be designed and OEM.
產品描述/Description
卡爪分為：整體爪，及各種分離爪。
可按用戶要求提供各型硬卡爪。
Hard jaws include one-piece jaws and two-piece jaws.
All kinds of hard jaws can be provided as the request of customers.

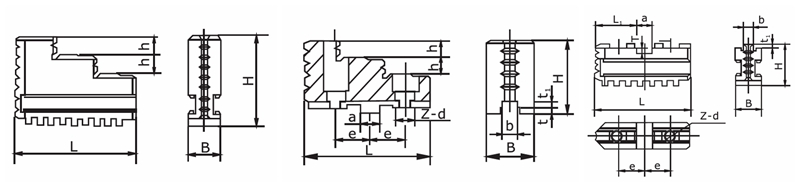

整體爪 One-Piece Jaws A型、D型分離爪 A/D Form Two-Piece Jaws
整體爪One-Piece Jaws
|
規格 Size |
80 | 100 | 125 | 130 | 160 | 165 | 190 | 200 | 240 | 250 |
315 320 325 380 |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | 32 | 42 | 56 | 56 | 70 | 70 | 72 | 85 | 105 | 105 | 130 | |
| B | 12 | 15 | 16 | 16 | 18.5 | 18.5 | 22 | 22 | 27 | 27 | 36 | |
| H | 33 | 38 | 45 | 45 | 54 | 54 | 57 | 61 | 69 | 69 | 91 | |
| h | 6.5 | 7 | 9 | 9 | 12 | 12 | 12 | 12 | 12 | 12 | 18 | |
The chuck with one-piece jaws is provided with each set of internal and external ones.
A型、D型分離爪-上爪 A/D Form Two-Piece Jaws-Top jaws
|
規格 Size |
160 | 200 | 250 | 315 | 325 | 380 | 400 | 500 | 630 | |
|---|---|---|---|---|---|---|---|---|---|---|
| L | 67 | 80 | 95 | 108 | 108 | 130 | 130 | 130 | 132 | 132 |
| B | 25 | 30 | 36 | 45 | 45 | 45 | 45 | 45 | 45 | 54 |
| H | 41 | 45 | 53 | 61 | 61 | 70 | 70 | 70 | 82 | 82 |
| h | 9 | 10.5 | 13.5 | 17.5 | 17.5 | 17 | 17 | 17 | 22 | 22 |
| a | 12.675 | 12.675 | 19.025 | 19.025 | 19.025 | 19.025 | 19.025 | 19.025 | 19.025 | 19.025 |
| b | 7.94 | 7.94 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 |
| e | 19 | 22.2 | 27 | 31.75 | 31.75 | 38.1 | 38.1 | 38.1 | 38.1 | 38.1 |
| t | 3 | 3 | 3 | 3 | 3 | 6 | 6 | 6 | 6 | 6 |
| t1 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| z-d | 2-11 | 2-11 | 2-13 | 2-13 | 2-13 | 2-15 | 2-18 | 2-18 | 2-22 | 2-22 |
A型、D型分離爪-下爪 A/D Form Two-Piece Jaws-Down jaws
|
規格 Size |
160 | 200 | 250 | 315 | 325 | 325 | 380 | 400 | 500 | 630 |
|---|---|---|---|---|---|---|---|---|---|---|
| L | 64 | 80 | 98 | 110 | 110 | 114 | 114 | 114 | 152 | 210 |
| L1 | 29 | 34.9 | 39.7 | 47.6 | 47.6 | 47.5 | 47.5 | 47.5 | 47.4 | 59 |
| B | 20 | 22 | 27 | 36 | 36 | 36 | 36 | 36 | 45 | 50 |
| H | 33 | 35 | 38 | 42 | 42 | 46 | 46 | 46 | 55 | 60 |
| a | 12.675 | 12.675 | 19.025 | 19.025 | 19.025 | 19.025 | 19.025 | 19.025 | 19.025 | 19.025 |
| b | 7.94 | 7.94 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 |
| e | 19 | 22.2 | 27 | 31.72 | 31.75 | 38.1 | 38.1 | 38.1 | 38.1 | 38.1 |
| t | 4 | 4.2 | 4.2 | 4.2 | 4.2 | 7 | 7 | 7 | 7 | 7 |
| t1 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| z-d | 2-M10 | 2-M10 | 2-M12 | 3-M12 | 3-M12 | 3-M16 | 3-M16 | 3-M16 | 4-M20 | 5-M20 |
The jaws are composed of top jaws and master jaws.Master jaws for form A size 325.380 and form D without clamping arc.
保留技術更改的權利：Subject to technical changes
