品牌：OMATEI

選型指導：
1，所用卡盤的品牌及型號
2，工件尺寸及需要夾持的高度
產品優勢：
1，標準軟爪材質為優質45#鋼，強度好，可硬化。
2，精密齒距緊密貼合卡盤基爪，降低磨損。
3，可用于NTH及所有其他品牌相關型號的卡盤。
4，客制化非標卡爪可設計、定做、OEM代工。

Brand:OMATEI
Selection Guidance
1, Chuck brand and model name
2, Workpiece size and the gripping height
Advantage
1, For standard soft jaws, the material is high quality 45# steel, stronger and hardenable.
2, Fine serration pitch can tight fit with chuck master jaws, lower abrasion.
3, Applicable onto the related chuck models of SMW/Kitagawa/Soul/Howa/Samchully/Auto-strong/Tonfou/Chandox/Autogrip/NTH and so on well-known brand.
4, Customized and non-standard jaws and be designed and OEM.

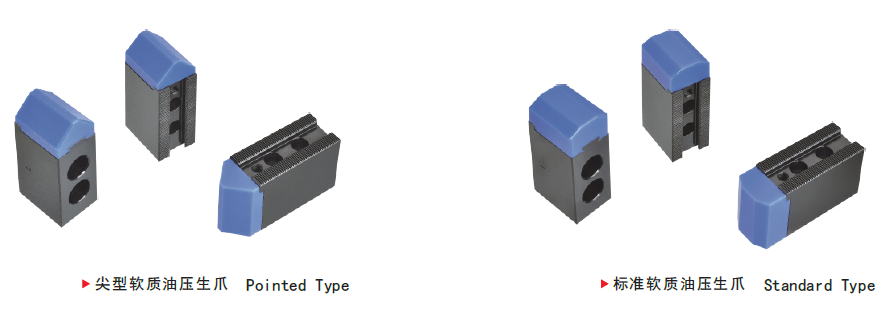

產品描述/Description

襯頭與油壓生爪采嵌入式緊配結合，多面拘束，可提升夾持工件的穩定性及保護工件表面。
（此襯頭采固定式緊配結合，不做替換）
The MC head is tight fit with steel parts, can′t be changed,it can improve the gripping stability and protect the work piece surface.

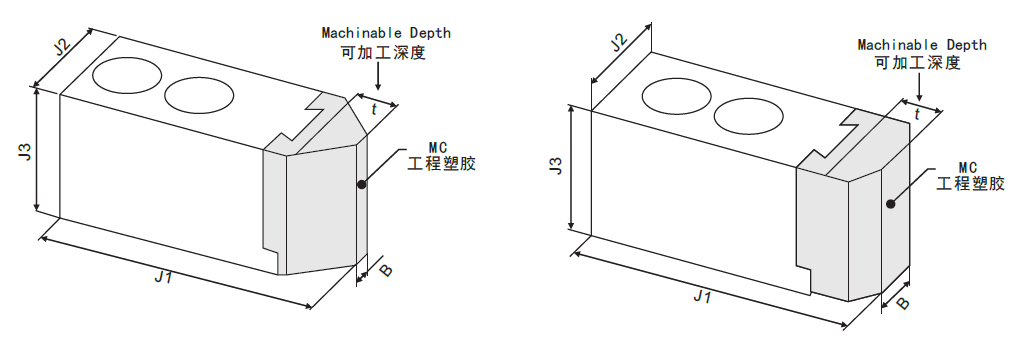

單位/UNIT:mm

注（Remarks）:

1.需訂做

It′s made for customized order

2.軟質的材質可分為1.MC尼龍；2.POM塑鋼

The available material is MC nylon and POM

可選齒距：3.0*60°，Other option of serration pitch: 3.0*60°
保留技術更改的權利：Subject to technical changes
